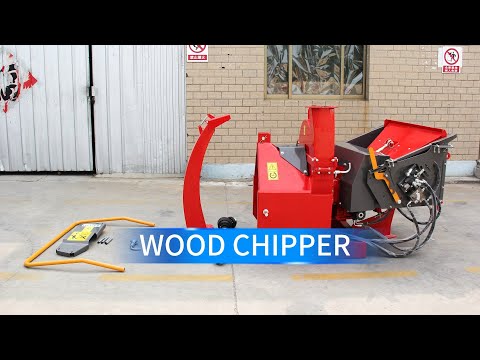

BX72R HEAVY DUTY PROFESSIONAL WOOD CHIPPER FOR TRACTOR

BX72R heavy duty professional wood chipper, for tractor from 30 to 100 HP

VIDEO

Free PTO shaft included.







Application:

BX72R wood chipper is PTO shaft driven wood chipper for professional and fast processing of wood with up to 7 inch in diameter. Suitable for medium and large tractors with 30 to 100hp and Cat II three-point hitch.



Technology:

Steplessly adjustable roller speed. Input roller speed is steplessly adjustable for easy adjustment of the chipper performance to diameter and type of wood. Smaller diameter can be pulled in and processed faster by the  BX72R wood chipper than larger or harder wood diameter. Especially for larger tractors with more than a 200bar / 2000mpa hydraulic pressure system, the BX72R is equipped with a second pressure valve in the input pressure pipe, so that the adjustment of the input roller speed can also be fine tuned when attached to large tractors.

Super heavy duty flywheel. Four 9.5inch long reversible knives, made of A8 level hardened tooling steel, are mounted on a 3/4inch wide and 220lbs heavy rotor of the BX72R wood chipper. Wood of up to 7inch diameter can be chipped into 1/2 to 2 inch sized pieces. Additionally mounted winglets on the rotor create the necessary air flow needed to guide even difficult material through the chipper. Inside the massive rotor housing additional replaceable branch breakers are mounted to even shred small branches efficiently.





The output hopper height is 7.5ft, can be turned by 230° and is able to throw the wood chips up to 40ft far. Trailers, containers and big bags can be easily filled. An output hopper extension of 20inch from 7.5ft to 9.5ft is optionally available, so that even large truck trailers can be easily filled. The BX72R has a capacity of up to 15 cu yd (12m³/h) wood chips per hour.

Easy maintenance. The newest features of the  BX72R wood chipper are an easy to open service door under the lower input roller, so that debris and wood parts can be easily removed and movable parts can easily be serviced. The completely redesigned BX72R wood chipper also offers a trouble free access to the feeding rollers, where now the adjustable counter knife can also be found. Just 2 bolts have to be loosened to lift the upper input roller together with its massive mounting frame and service the infeed rollers fast and efficiently.
